Feutures:
Low cost
More than 20 standard sizes
Non-symmetrical mounting pattern
Laminated Silicon steel and Nickel Alloy available.
Application:
For applications that require accuracy with small phase angle error
Applications would include Voltage, power and energy monitoring devices.

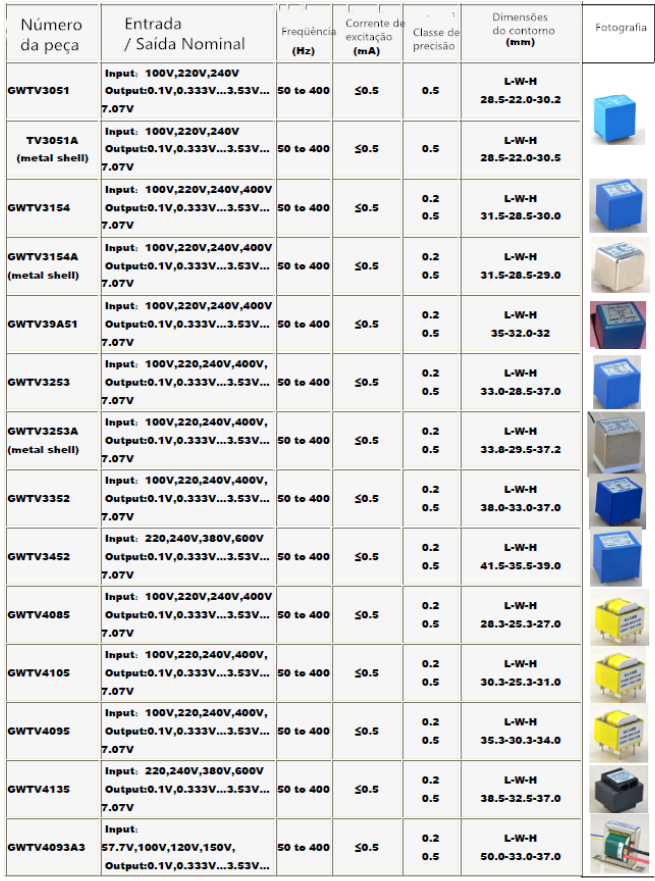

Specification:
Isolation Voltage:2500 Vrms for 1 minute
Dielectric Resistance:1000 M Ohms @ 500 Vdc
Surge Withstand:5000V（1.2/50μs standard shock wave)optional
Rated Load Resistance:100K Ohms
Operating Temperature:-25 to +55℃-40 to +85℃optional
Frequency:50 to 400 Hz
Accuracy Class:as defined in IEC 61869-3 Part 3 Voltage Transformers Class 0.2,0.5
RoHS compliant.
