GW-2180 Pipeline Locator

PRODUCT > Power Monitoring Device > GW-2180 Pipeline Locator

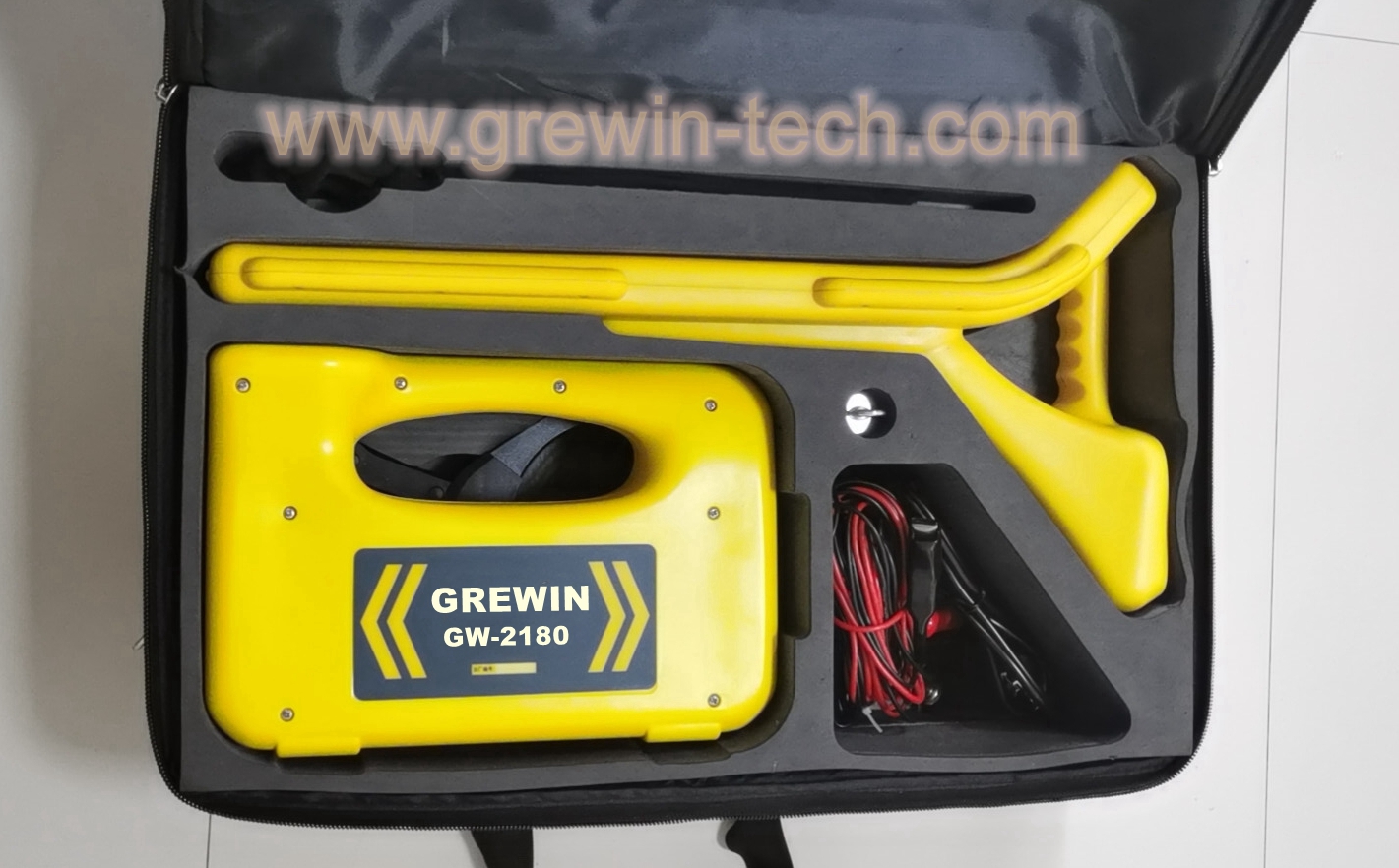

GW-2180 Pipeline Locator

Underground pipeline is an important part of urban infrastructure, urban underground pipelines, including water supply, drainage, gas, heat, telecommunications, electricity, industrial pipelines and other broad categories,Is to play a city function, the material basisto ensure that the city's economic and social health, coordinated development, known as the city's "blood vessels" and "nerves".
shared:



1GW-2180 pipeline detector features
2
(1) multi-function
1Transmitter function: With the induction method, direct method and clamp
method three signal application mode, suitable for different occasions.
2 Receiver function: used for underground pipes, cable position, direction,
depth and tube current measurement.
3 The left and right positioning arrows indicate the target pipeline position,
positioning fast and accurate; front and rear arrows and dB values indicate the
location and size of the damage points of the coating.
4With backlight function, suitable for night use.
5GPS geolocation function, pipeline to automatic mapping.
6Professional data analysis software, automatic detection report generated.
7GW-2180 receiver unique features: for failure (pipe failure is the outer
coating damage, cable failure is the outer sheath damage) positioning, detection of
underground pipeline insulation damage.
8Current measurement: Measure the current applied by the transmitter to the
pipe under test.
9Multimeter function: measurable output voltage, line voltage, line current,
impedance and power. Test the cable continuity and insulation quality before and
after cable fault finding.
10External induction clamp: suitable for testing the cable can not be directly
(2)High positioning accuracy:
A variety of measurement
modes for pipeline positioning (valley mode, peak
mode, broad peak mode, peak
arrow mode), can verify each other to ensure the
accuracy of pipeline positioning.
1Maximum value method: Peak mode, broad peak mode, peak arrow mode
can be used to determine the horizontal component ( H X ) or horizontal gradient
( H X ) changes, according to its maximum position tolocate;
2 Minimal method: the use of the valley model, by measuring the vertical
component ( HZ ) changes, according to its minimum position to locate.
(3)Multi-Measuring depth method:
With a variety of sounding methods can be arbitrarily optional, and can verify
each other.
1Double - level coil direct reading method;
2Single - level coil 80% method, 50% method;
345 degree method.
(4)Strong anti-interference
1Observed parameters: both measured horizontal component ( H X ), vertical
component ( HZ ) and can measure the level gradient ( H X ).
2 Transmit power: the transmitter output power of 10W and continuously
adjustable, according to the need to choose.
3Working frequency:
Transmitter frequency:128Hz512Hz1KHz2KHz8KHz33KHz65KHz
83KHz
Receiver frequency:radio50Hz100Hz128Hz512Hz1KHz2KHz
8KHz33KHz65KHz83KHz
According to the target pipeline characteristics (material, structure, depth,
length, etc.), the environment to select the appropriate operating frequency.
