TPM300A-96A Module Multiple Meter

PRODUCT > Power Meter > TPM300A-96A Module Multiple Meter

TPM300A-96A Module Multiple Meter

shared:

Introduction:
TPM 300A is intelligent mutilpurpose power which integrates the remote measuring and remote communication functions.
This meter could match different function includes test, display and Remote Transfer all the common power parameters, max. 4-ch digital inputs(optional),2-ch relay output (optional),1ch 4~20mA analog output(optional) ,active and reactive energy impulse output (optional.And communicate with the computer to be a intelligent monitoring system.

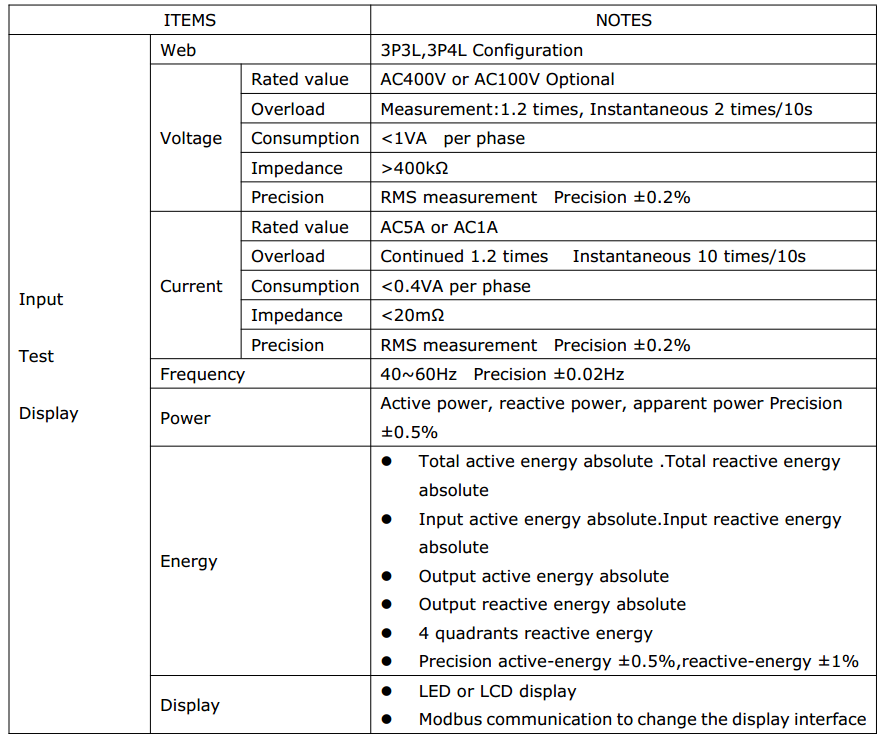

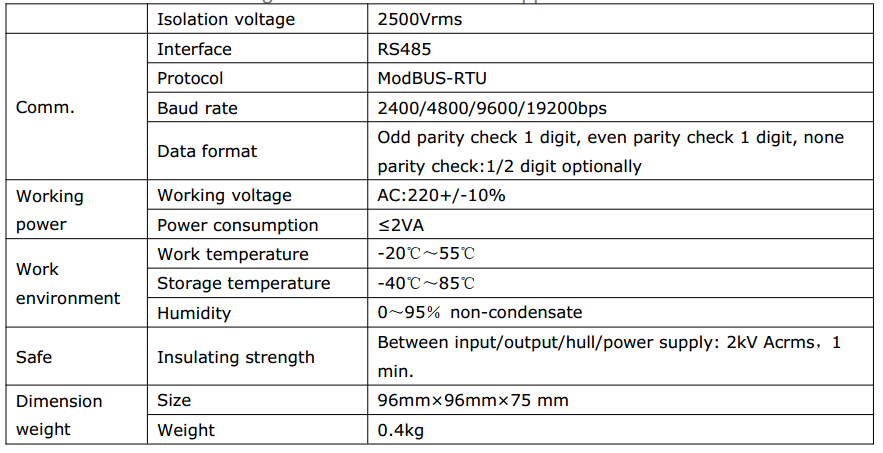

Technical Indicators:
Installation:

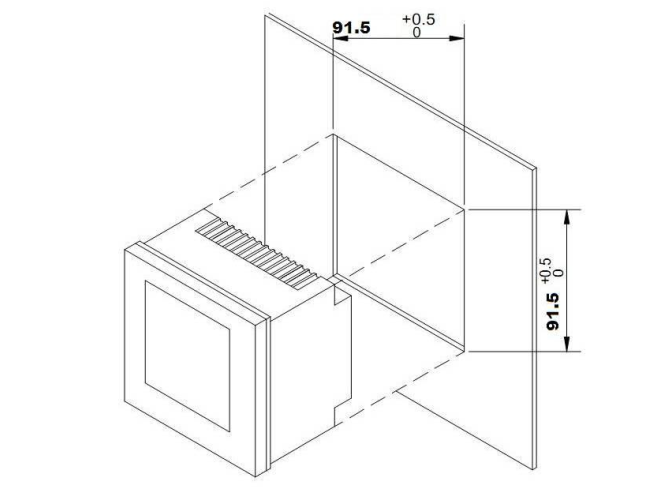

Dimension of PM 300A
Meter dimension size:96*96*75mm
Panel size:96*96mm
Slot size:91.5 -0.0+0.5 mm × 91.5 -0.0+0.5 mm
Min. Side size is 71mm
Installation steps:
Slots on the switchgear should be 91.5 -0.0+0.5 mm × 91.5 -0.0+0.5 mm
Take down the fixed mount of the meter
Put the meter into the slots and insert the fixed mount
