EPM 300A-3 Compact Power Meter

PRODUCT > Intelligent Network Power Meter > EPM 300A-3 Compact Power Meter

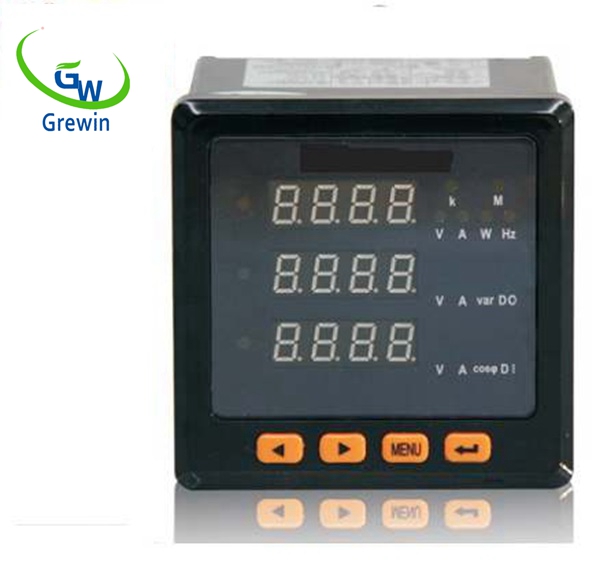

EPM 300A-3 Compact Power Meter

shared:

Product General:
GWEPM300A series multi-functional power monitoring device is one
intelligent panel meter whichsets telemetering, telesignalisation,telecontrol into one body, and can be used widely for substation automation, distribution automation, intelligent building, and electric energy measurement, management and check of the enterprise.

GWEPM300A series multi-functional power monitoring device can measure and display all the common power parameters (such as voltage, current, active/reactive/apparent power, frequency, four quadrant electric energy and so on), can set PT/CT multiplying factor, and has various functions such as RS485 communication networking, switching input/output, analog input/output, electricity degrees pulse output and so on, It is high cost performance, can directly replace various meters, relays, transmitters and other components. This meter can communicate digitally with upper computer to form intelligent distribution system together.

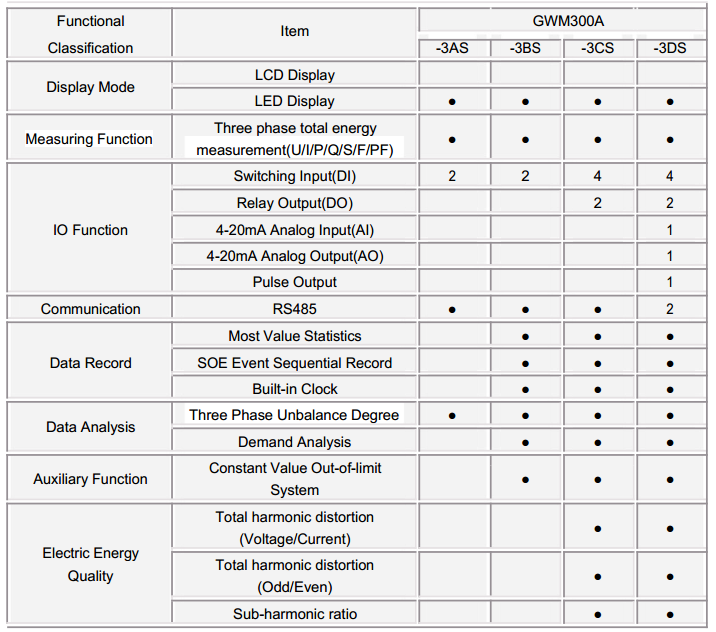

Functional Configration:

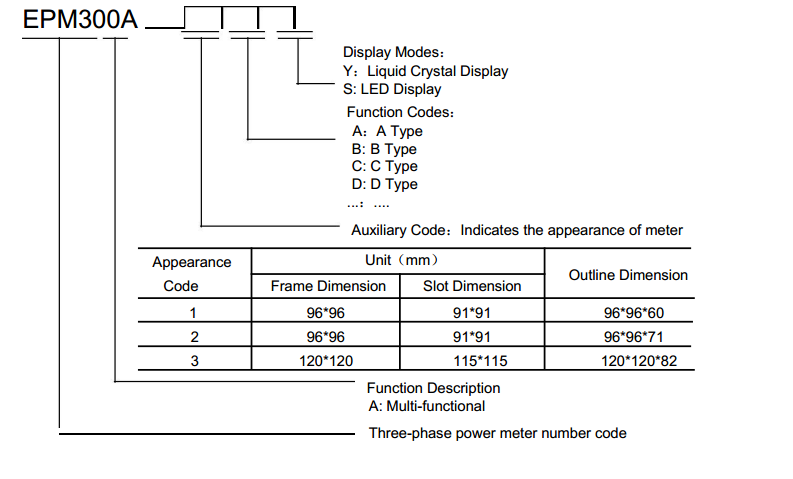

Part Numbers:
