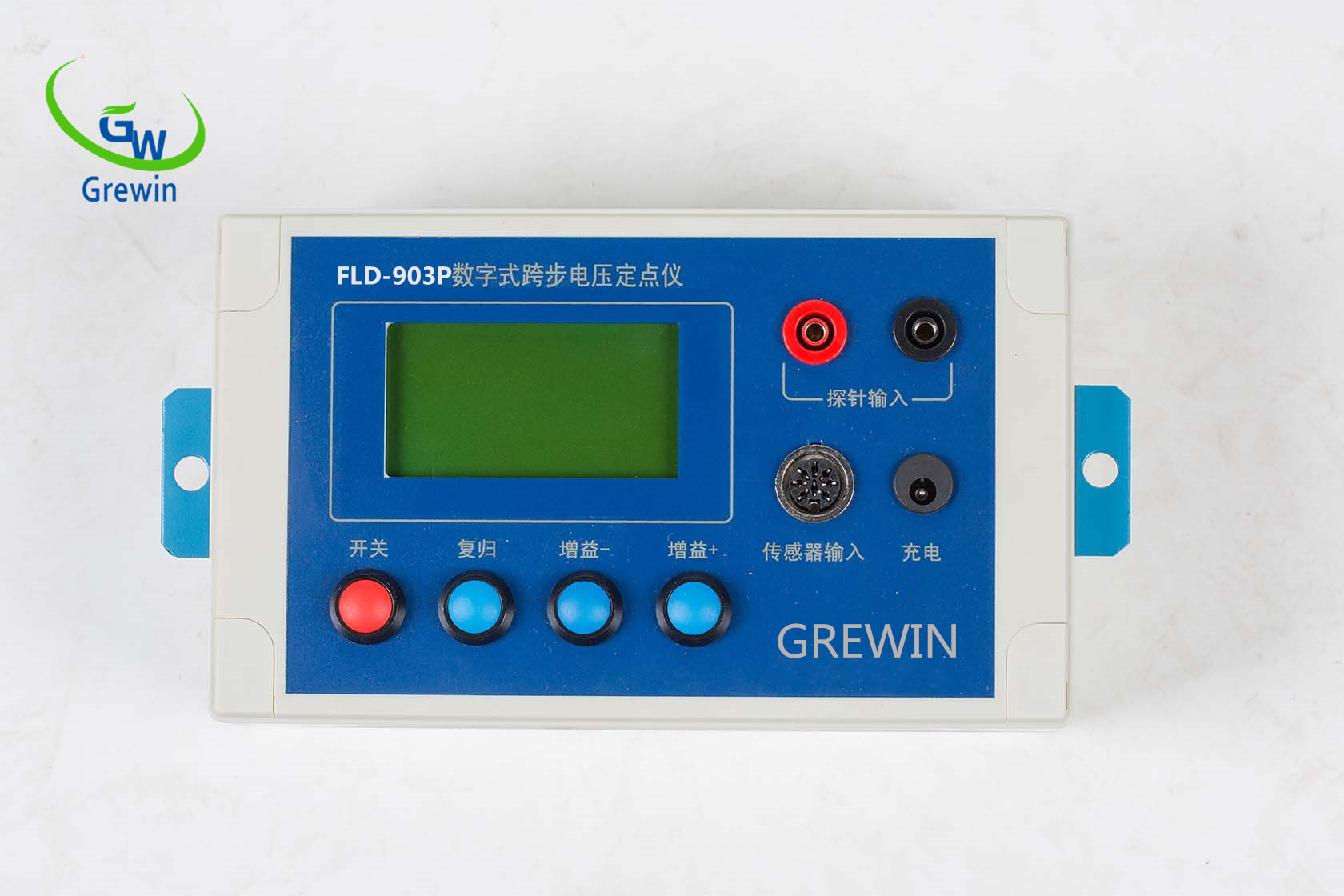

FLD-903P Digital Step Voltage Pinpoint Fault Locator

PRODUCT > EHV Cable Sheath Fault Location > FLD-903P Digital Step Voltage Pinpoint Fault Locator

shared：

1.Design Features

FLD-903P digital step voltage pinpointing device

l Indicate the fault point direction directly, find the fault point easily

l High sensitivity and widely responding range

l Digital signal processing technology to display signal waveform directly. High anti-interference

l Automatic zero setting to offset ground potential variation effect

l Testing the resistive current by current transducer and cable fault section

l High capacity rechargeable lithium battery.Max.15 hours work time

l Low battery indication.

l Auto power off when under-voltage and long-time no-operation

2.Tech. Specifications

Signal receiving mode	Voltage signal: probe input Current signal: current transducer input
Max. testing sensitivity	Voltage signal 0.1mV;Current signal 5mA
Signal max. input range	Probe 300V
Display	Signal waveform, fault point direction, battery lever
Power supply	7.4V,2400Mah rechargeable
Volume	210mm×122mm×125mm;probe: Φ30×1100mm
Weight	Main unit:0.5kgs;probe:0.5kgs
Operating Temperature	-10℃－40℃
Humidity	5-90％RH
Elevation	<4500m
