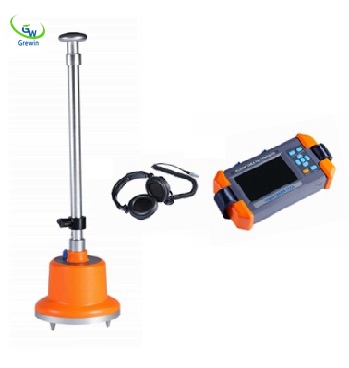

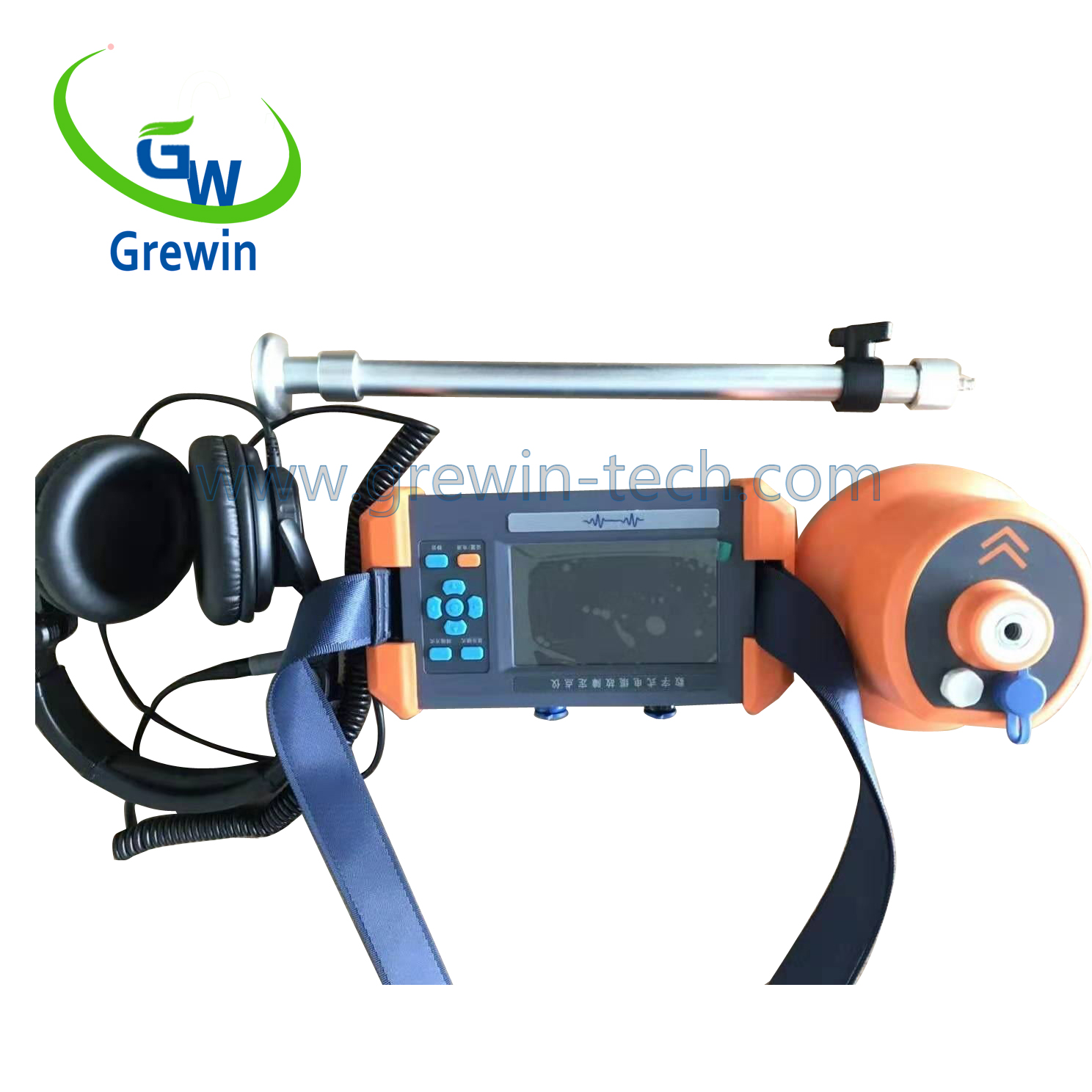

PCLD-904P Digital Power Cable Fault Pin-pointer

PRODUCT > Power Monitoring System > PCLD-904P Digital Power Cable Fault Pin-pointer

PCLD-904P Digital Power Cable Fault Pin-pointer

shared:

1.DESIGN FEATHER



1) Integrated the function of acoustic magnetic synchronization method



2)  Adopts background noise reduction tech. to reduce environment noise



3)  Intelligent pinpointing method to calculate the acoustic magnetic delay value



4)  Background noise reduction function



5)   Auto muting function to avoid the noise



6)  Electronic compass function to display the included angle between cable route direction and sensor. It’s very useful for quick pinpointing



7) acoustic channel filtering parameter adjustable



8)  Auto gain adjustment function for easy use, automatic trigger by magnetic field



9)   High performance anti-noise headphone



10) 800x840 color LCD, luminance reach 800cd/m2 to make clear display under the sun



11)  Power supply management: power off automatically in 5 min. without action; Power off also when low battery voltage



12)  Built-in Li-ion battery



2.TECH. SPECIFICATIONS

1)     acoustic magnetic synchronous pin-pointing:



a)  acoustic channel

                    Bandwidth:



all-pass: 80Hz~1500Hz



low-pass: 80Hz~400Hz



high-pass: 200Hz~1500Hz



band-pass: 150Hz~600Hz



b)  Signal gain: ≥80dB



c)  Accuracy: 0.1m



2)    Background noise reduction mode: support noise reduction, no noise reduction, adaptive noise reduction



3)     Power supply:



a)  Battery: built-in Li-ion battery series,3.7 V,6700mAH



b)  Continuous work time above 9 hours



c)  Charger: input AC220V±10%,50Hz;output 8.4V,output 5V/2A



4)     Display method: 800X470 dot LCD



5)     Size: 230mm×127mm×55mm



6)     Weight: main unit 1kg,sensor 1.4kg



7)     Use environment: -10~40,5-90% RH, elevation <4500m
